Electric Order Picker
The Electric Order Picker is a compact, electrically powered picking machine used in warehouses and logistics facilities across the UAE and wider GCC region. It enables operators to retrieve items directly from storage racks at height while maintaining controlled movement in narrow aisles. Designed for structured order fulfillment, it supports handling capacities up to 1200 kg and operates efficiently within minimum aisle widths of around 1300 mm, making it suitable for high-density storage environments common in MEA operations.
In warehouse facilities across Dubai and Abu Dhabi, the equipment integrates smoothly with narrow aisle racking systems used in retail distribution, spare parts storage, and e-commerce fulfillment. Models such as OPH12 and OPH12K handle loads up to 1200 kg, with lift heights ranging from approximately 6 to 9 meters depending on configuration. A compact turning radius near 1830 mm allows controlled navigation even in space-restricted aisles.
Electric drive architecture ensures predictable travel and lifting behavior during extended shifts. Polyurethane wheels maintain stable contact on finished warehouse floors, while the rigid mast structure supports consistent vertical alignment. The machine fits well into UAE warehouse operations that prioritize vertical storage utilization without expanding floor area.
Technical Specifications
| Product Code | OPH12 | OPH12K |
| Load Capacity | 1200kg / 2646lb | |

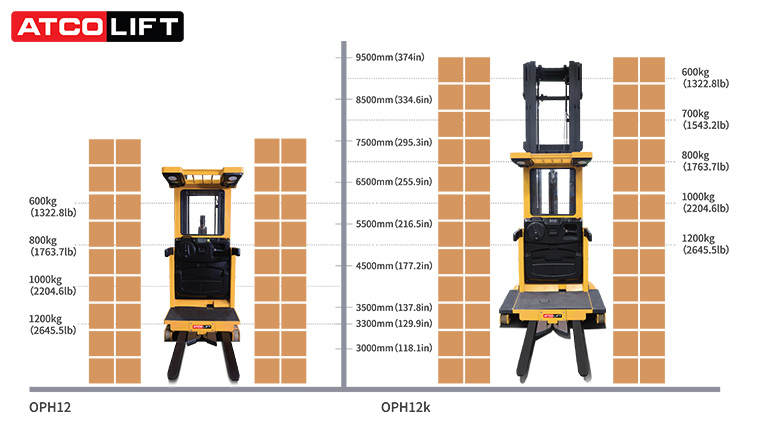

| Max Lift Height | 6000mm / 236.2in | 9000mm / 354.3in |
| Max Mast Extended Height | 8215mm / 323.4in | 11215mm / 441.5in |
| 360° In-Situ Steering | Available with both chassis sizes | |
| Min. Turning Radius | 1830mm / 72in | |
| Min. Aisle Width | 1300mm / 51.2in | |
| Product Code | ALOPH01 | ALOPH01E |
| Power type | Electric | |
| Operator Compartment Capacity(kg) | 135 | |
| Load Tray Shelf Capacity(kg) | 100 | |
| Load Deck Capacity(kg) | 150 | |
| Platform Step Height(mm) | 318 | |
| Platform Height(mm) | 3015 | |
| Platform Fully Lowered(mm) | 1395 | |
| Overall Extended Height(mm) | 4150 | |
| Work Height(mm) | 5000 | |
| Overall Collapsed Height(mm) | 1454 | |
| Vehicle length(mm) | 1460 | |
| Vehicle Width(mm) | 750 | |
| Minimum Turning Radius(mm) | 1300 | |
Key Features
- Electric drive system for indoor warehouse use
- Operator platform elevates with load for direct picking
- Load handling capacity up to 1200 kg
- Lift height configurations reaching up to 9 meters
- Compact chassis suitable for narrow aisle layouts
- Minimum aisle width requirement around 1300 mm
- Controlled turning radius for precise aisle movement
- Polyurethane tyres for smooth industrial flooring
Electric Order Picker
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
Electric Order Pickers are commonly used in UAE warehouses handling carton-level picking, spare parts storage, and e-commerce fulfillment. Facilities in Dubai and Sharjah use them for narrow aisle operations where vertical rack access is required without moving full pallets, supporting organized and repeatable picking workflows.
The machine is designed with a compact chassis and controlled turning radius, allowing operation in aisles close to 1300 mm wide. This makes it suitable for high-density storage layouts used in UAE logistics centers, where maximizing racking height and minimizing aisle space are operational priorities.
Operators must follow rated capacity limits, typically up to 1200 kg at the specified load center. Lift height depends on model configuration and can reach several meters. Maintaining proper load placement and avoiding uneven stacking are critical for stable operation at height.
The equipment integrates into WMS-driven workflows through zone picking and barcode-guided routes. In UAE distribution centers, operators often combine the picker with handheld scanners, allowing accurate item selection while remaining within assigned aisles and reducing cross-traffic.
Routine maintenance includes inspecting mast guides, checking wheel wear, monitoring battery condition, and verifying brake response. In Middle East environments with extended operating hours, scheduled preventive servicing helps maintain consistent lift performance and minimizes unplanned downtime.
