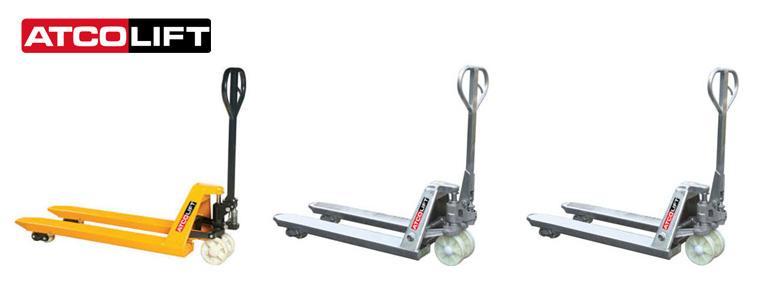

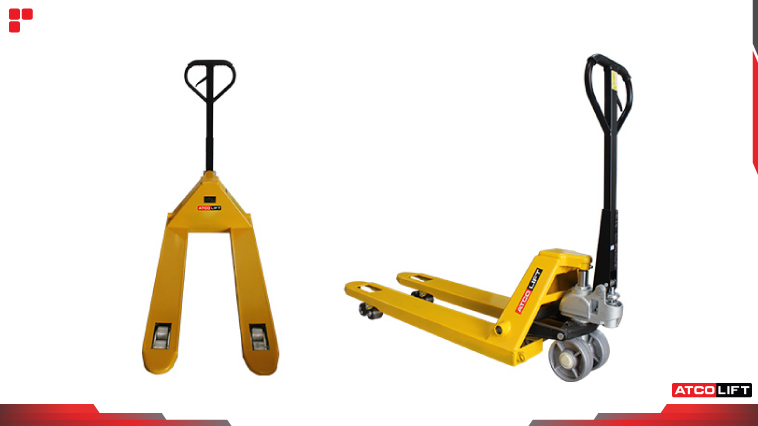

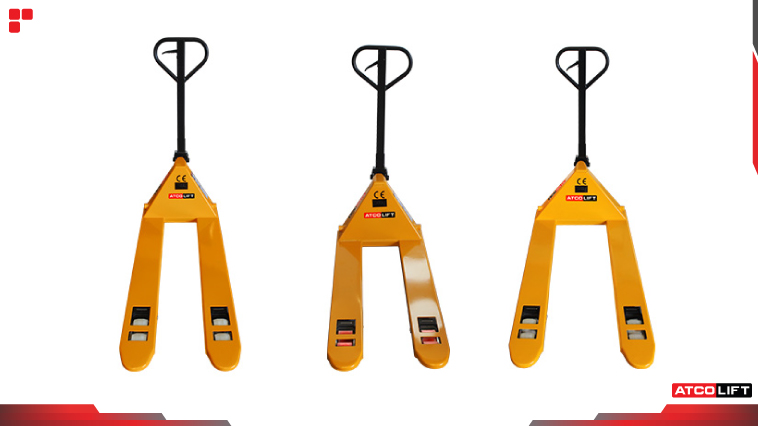

MHA Series Hand Pallet Trucks

MHA Series Hand Pallet Trucks

ATCOLIFT hand pallet truck with 2000, 2500, 3000, 5000kg capacity, offers users with a simple, economical and reliable handling equipment. Hydraulic pump passed the strict test, convenient design for repair or maintenance, chassis is with high strength and durable.

Product Code MHAN2.5T MHAJ2.5T MHAN3T MHAJ3T ACS20L
  Show Price Show Price Show Price Show Price Show Price
Capacity (kg) 2500 2500 3000 3000 2000
Fork length (mm) 1150 1150 1150 1150 1150
Width over forks (mm) 550 685 550 685 540
Total Lift Height (mm) 190
Min. fork height (mm) 75
  Stainless steel
Product Code STANDARD STAINLESS STEEL GALVANIZED
Capacity (kg) 2500 3000 2000 2000
Fork length (mm) 900 900 1150 1150
Width over forks (mm) 450/520 520/540/685
Total Lift Height (mm) 190
Min. fork height (mm) 75
Product Code ALCBY5T
  Show Price
Capacity kg 5000
Lowered fork height mm 88
Steering wheel mm φ200
Fork wheel tandem mm φ85x80
Max. lift height mm 205
Total height mm 1253
Overall length mm 1614
Fork length mm 1220
Width overall forks mm 685
Ground clearance, centre of wheelbase mm 24
Aisle width for pallets 1000x1200 crossways mm 1814
Aisle width for pallets 800x1200 lengthways mm 1814
Turning radius mm 1370
Service weight kg 103
Option: With antifrost oil, suitable for working in cold stores

Features:
  • Guild bracket provide smooth pallet access and increase productivity
  • Ergonomic handle to provide comfortable and efficient operation
  • Solid frame and reinforced fork ensure high reliability
  • Standard Nylon wheel, optional PU wheel are available
