Electric Platforms

Electric Platforms

Product Code AHIW2.0EU AHIW4.0EU AHIW3.0EU
Capacity (kg) 1000 2000 3000
Raised Ht. (mm) 1010 1010 1020
Lowered Ht. (mm) 190 190 220
Platform Size (mm) 1300 x 800
Motor (KW) 0.75 1.5 s
Features:
  • Designed for industrial heavy applications (as part of a production process, for machine feeding or stacking etc.)
  • Double acting hydraulic cylinders.
  • Lifting limit switch.
  • Alum table frame protects workers from injury by cutting off power.

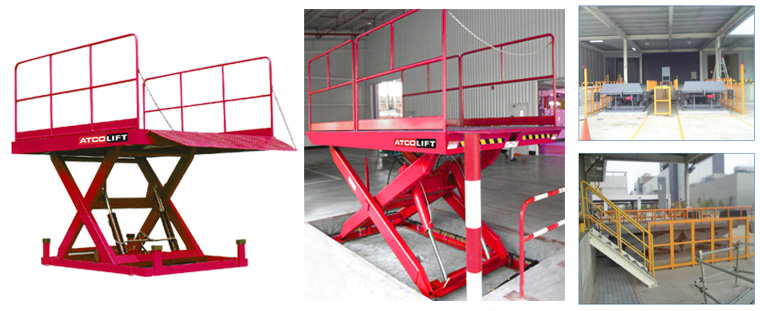

Hydraulic Lifting Platform
Product Code ALSJG l-1.6 ALSJG 2-1.6 ALSJG 3-l.6 ALSJG 5-1.6 ALSJG 6-1.6 ALSJG 10-1.6
Rated Load (kg) 1000 2000 3000 5000 6000 10000
Vertical Travel (mm) 1600 1600 1600 1600 1600 1600
Min. Height (mm) 300 400 400 500 600 700
Platform Size (mm) 2500 * 2000 2500 * 2000 2500 * 2000 2500 * 2000 3000 * 2000 3000 * 2000
Flap Size 300 300 300 300 300 300
Motor Power (kw) 2.2 3 4 4 5.5 7.5
Power Voltage AC380V AC380V AC380V AC380V AC380V AC380V
Weight (kg) 960 1260 1480 1780 1950 4520
Features:
  • The platform can load the cargo directly from the ground, there is no need to have slop
  • The flexible connection board can connect to the vehicle smoothly. Forklift and hard pallet truck can enter into it to load and unload cargos conveniently
  • The platform is in a same horizontal level with ground when finishes loading, and it will not occupy any ground space
  • Overload safety protection device
  • Auxiliary lowering system
Hydraulic Platforms
Product Code ALSJG 1-1 ALSJG 1-1.3 ALSJG 2-1 ALSJG 2-1.3 ALSJG 3-1
Rated Load (kg) 1000 1000 2000 2000 3000
Vertical Travel (mm) 1000 1300 1000 1300 1000
Min. Height (mm) 300 350 350 350 350
Platform Size (mm) 1600 * 1000 2000 * 1500 1600 * 1000 2000 * 1500 1800 * 1000
Motor Power (kw) 1.5 2.2 2.2 3 3
Power Voltage AC380V AC380V AC380V AC380V AC380V
Weight (kg) 350 620 500 700 800
Product Code ALSJG 3-1.3 ALSJG 5-1.2 ALSJG 8-1 ALSJG 10-1
Rated Load (kg) 3000 4000 8000 10000
Vertical Travel (mm) 1300 1200 1000 1000
Min. Height (mm) 400 500 600 750
Platform Size (mm) 2000 * 1500 2000 * 1800 2600 * 1800 3000 * 2000
Motor Power (kw) 3 5.5 5.5 7.5
Power Voltage AC380V AC380V AC380V AC380V
Weight (kg) 900 1500 2000 4200
