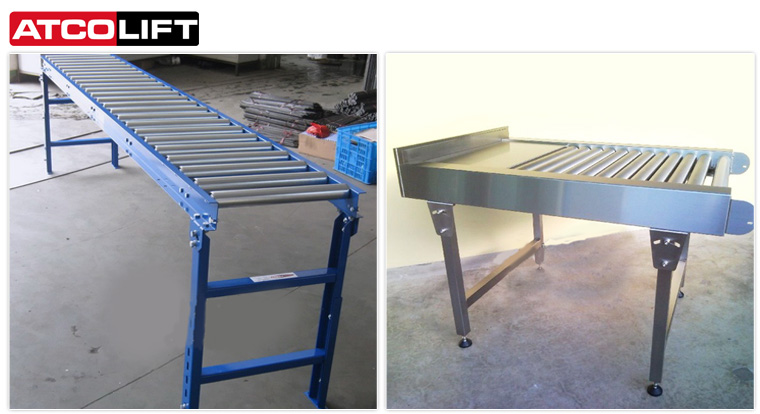

Gravity Conveyor
Gravity Conveyor built to customer specifications or based on the product dimensions & weight.
Standard Model Specifications:
NOTE: Customized Model & Motorised Gravity Conveyor Model Available
| Product code | Roller | RC | BF | LG | |||
| Dia(mm) | Wall(mm) | Bearing | Capacity | Roller Center(mm) | Between Frame Width(mm) | Conveyor Length(mm) | |
| ALGRC350 | 35 | 1.2 | HM325 | 58 | 50 | 150,250,350 | 3000 |
| ALGRC380 | 38 | 1.2 | HB350 | 70 | 50 | 200, 300, 500 | 3000 |
| ALGRC400 | 40 | 1.2 | FA381 | 100 | 75, 100 | 300, 500, 750 | 3000 |
| ALGRC483 | 48.3 | 1.65 | HM450 | 126 | 75, 100 | 500, 750, 950 | 3000 |
| ALGRC500 | 50 | 1.5 | HM475 | 150 | 75, 100 | 500, 750, 950 | 3000 |
| ALGRC600 | 60 | 2 | HB560 | 280 | 100, 125 | 500, 750, 950 | 3000 |
| ALGRC635 | 63.5 | 3 | FM577 | 315 | 100, 125 | 750, 1000, 1250 | 3000 |
| ALGRC700 | 70 | 2.9 | HP643 | 380 | 100, 125 | 750, 1000, 1250 | 3000 |
| ALGRC760 | 76 | 6 | SM576 | 450 | 100, 125 | 750, 1000, 1250 | 3000 |
| ALGRC890 | 89 | 6 | SM780 | 500 | 100, 125 | 750, 1000, 1250 | 3000 |
- Roller - carbon steel, zinc plated, double spring
- Frame - carbon steel, powder coated
- Roller - stainless, aluminum, PVC; galvanized, rubber coated (Optional)
- Frame - stainless, aluminum, galvanized (Optional)
NOTE: Customized Model & Motorised Gravity Conveyor Model Available
