SIRIUS AUTONOMOUS MOBILE ROBOTS
Our SIRIUS mobile robots Rely on throughput and delivery rather than process, Hence ideal solution for logistics, e-commerce and warehousing industry.Our SIRIUS Autonomous Mobile Robots follows flexible path navigation and can intelligently decide their path to the destination. Built with a unique modular architecture, AMRs provide a safe and secure passage of materials inside your distribution centers which helps to increase the process efficiency and performance with minimal human intervention.
Powered by the NIDONav & NIDOFleet software, the fleet of robots can be monitored and controlled through a user friendly interface and data can be synced with your WMS or ERP applications.
PRODUCT FEATURES:
- Payloads: 100 kgs – 1500 kgs
- Towing Capacity: 250 kgs – 1700 kgs
- Navigation: 2D LiDAR sensor (Natural)
- Applications: Lifting, tugging, conveyors & unit load
- Charging: Easy battery swap & auto dock charging

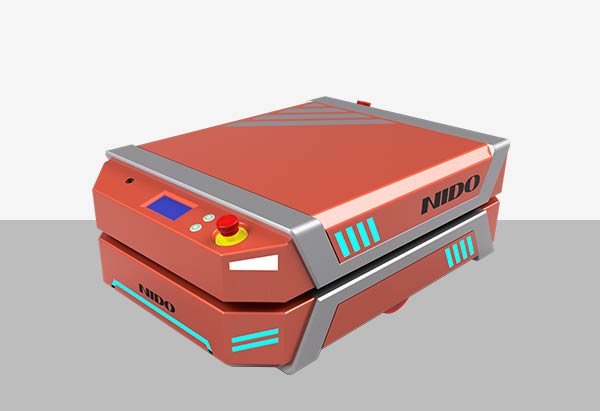

SIRIUS 100
Capable of transporting upto 100 kgs with flexible path navigation. It can pull a trolley of upto 250 kgs

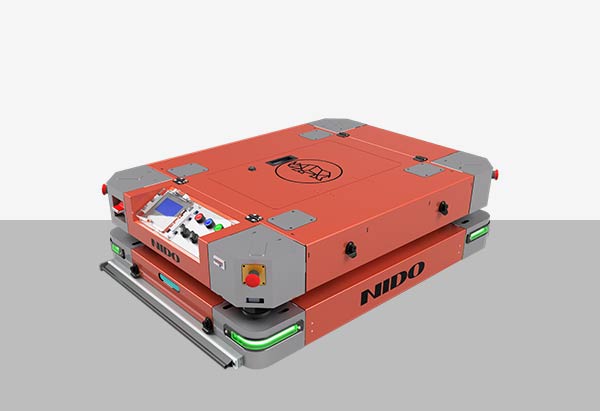

SIRIUS 500
Capable of transporting upto 500 kgs with flexible path navigation. It can pull a trolley of upto 700 kgs

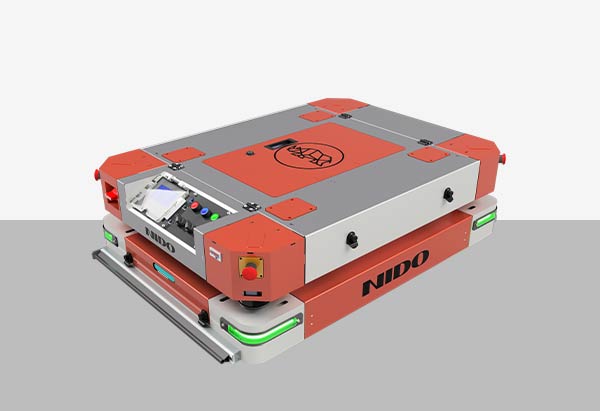

SIRIUS 1500
Capable of transporting upto 1500 kgs with flexible path navigation. It can pull a trolley of upto 1700 kgs
| SIRIUS 100 | SIRIUS 500 | SIRIUS 1500 | |
|---|---|---|---|
| Dimensions | |||
| Length | 900 mm | 1200 mm | 1750 mm |
| Width | 600 mm | 800 mm | 1150 mm |
| Height | 350 mm | 350 mm | 350mm |
| Height with Lifter | As per application | As per application | As per application |
| Ground clearance | 30 mm | 30 mm | 30 mm |
| Weight (without load) | 100 kg | 250 kg | 410 kg |
| Weight with Lifter | 150 kg | 330 kg | 510 kg |
| Load surface | 600 x 800 mm | 600 x 830 mm | 1270 mm x 770 mm |
| Wheel diameter | Drive wheel: 200 mm Castor wheel: 100 mm | Drive wheel: 200 mm Castor wheel: 100 mm | Drive wheel: 200 mm. Castor wheel: 150 mm |
| Color | Dual Colour Scheme – NIDO Orange (RAL 2012) and Black (RAL 8022) | ||
| Payload | |||
| Robot payload | 100 KG | 500 KG | 1500 KG |
| Towing capacity | 300 kg | 750 kg | 2000 Kg |
| Speed and performance | |||
| Battery Running time | 8 Hours | 8 Hours | 8 hours |
| Maximum speed | forwards: 1.5 m/s (5.4 km/h) backwards: 1.5 m/s (5.4 km/h) | forwards: 1.5 m/s (5.4 km/h) backwards: 1.5 m/s (5.4 km/h) | forwards: 1.5 m/s (5.4 km/h) backwards: 1.5 m/s (5.4 km/h) |
| Acceleration (full payload, flat surface) | 0.2 m/s^2 | 0.2 m/s^2 | 0.2 m/s^2 |
| De-Acceleration (full payload, flat surface) | 0.2 m/s^2 | 0.2 m/s^2 | 0.2 m/s^2 |
| Maximum incline (with payload) | 5% Incline | 5% Incline | 5% Incline |
| Turning circle Dia ( On the spot Turn ) | 1020 mm (around center of robot) | 1400 mm (around center of robot) | 2050 mm (around center of robot) |
| Minimum width, door | 1150 mm | 1450 mm | 1850 mm |
| Minimum width, passage | 1150 mm | 1450 mm | 1850 mm |
| Minimum width, two robots passing | 2300 mm | 2800 mm | 3800 mm |
| Precision, docking to VL marker | +/-20 mm | +/-30 mm | +/-30 mm |
| Positioning accuracy | +/-50 mm of position, +/-20 mm to docking marker | +/-50 mm of position, +/-30 mm to docking marker | +/-50 mm of position, +/-30 mm to docking marker |
| Traversable gap and sill tolerance | 30mm | 30mm | 30mm |
| Power | |||
| Battery | Li-ion 24 V , 55 Ah | LiFPo 24 V, 80 Ah | Li-ion, 48 V, 80 Ah |
| Charging Time | up to 3.5 hours (10-80%: 2.5 hours) | up to 4 hours (10-80%: 3 hours) | upto 5 hours, (10-80%: 4 hours) |
| External charger | Input: 200-240 V ac, 50-60 Hz / Output: 24 V, max 18 A | Input: 200-240 V ac, 50-60 Hz / Output: 24 V | Input: 100-230 V ac, 50-60 Hz / Output: 48 V |
| Battery Charging Cycle | Minimum 1500 cycles | Minimum 1500 cycles | Minimum 1500 cycles |
| Environment | |||
| Ambient temperature range | +5°C to 50°C (humidity 10-95% non-condensing) | +5°C to 50°C (humidity 10-95% non-condensing) | +5°C to 50°C (humidity 10-95% non-condensing) |
| IP class | IP 21 | IP 21 | IP 21 |
| Communication | |||
| WiFi | Dual-band wireless AC/G/N/B | Dual-band wireless AC/G/N/B | Dual-band wireless AC/G/N/B |
| I/Os | Ethernet and USB | Ethernet and USB | Ethernet and USB |
| Safety | |||
| Safety System | 2D Laser Scanner, Ultrasonic Sensor, Optional Contact Type Safety sensor, 2 Emergency Stop Buttons | 2D safety Laser Scanners, Contact Type Safety Bumper, Safety PLC, 2 Emergency Stop Buttons | 2D Safety Laser Scanners, Contact Type Safety Bumper, Safety PLC ,4 Emergency Stop Buttons |
| Navigation Sensor | |||
| Navigation Sensor | 2D LiDAR (Natural Navigation) | 2D LiDAR (Natural Navigation) | 2D LiDAR (Natural Navigation) |
ATTACHMENTS & CHARGING OPTIONS:

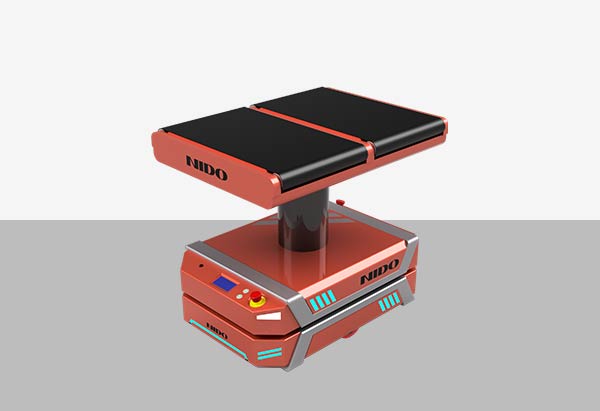

Dual Belt Conveyor

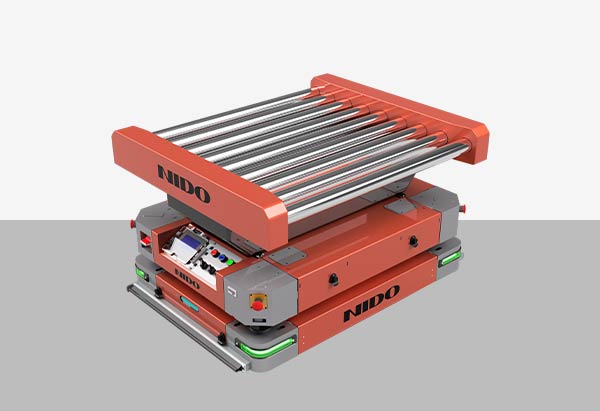

Power Roller Conveyor

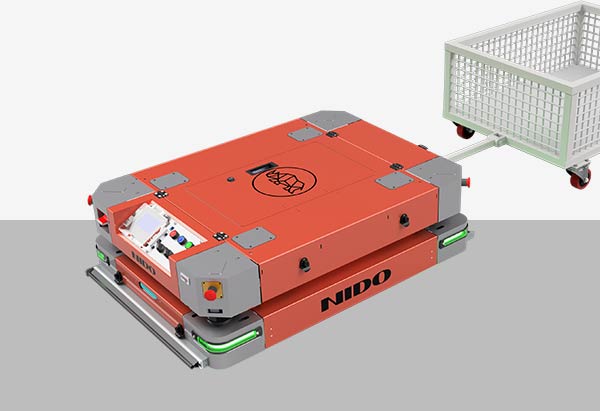

Tugging

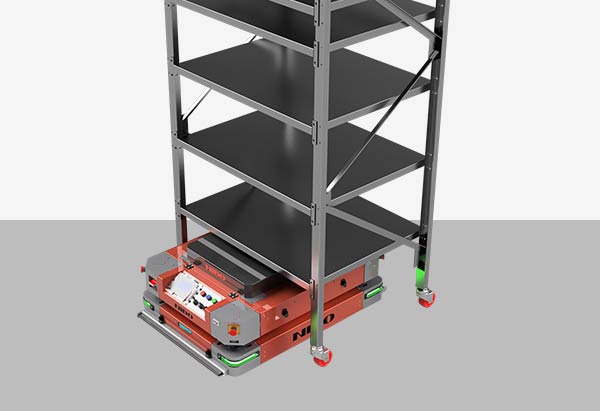

Tunneling
Lifting

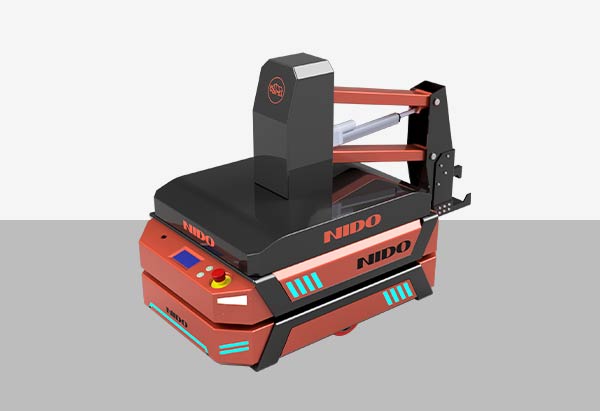

Manual Tugging

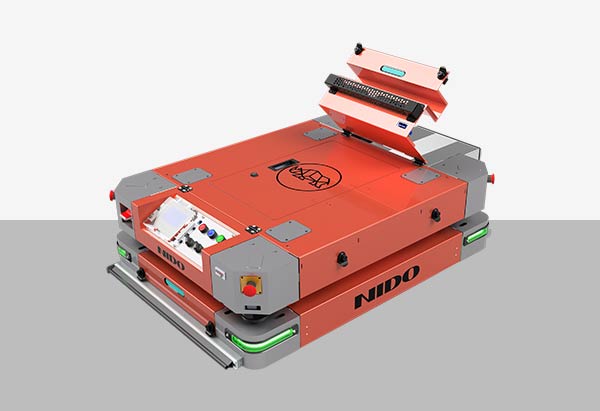

Easy Battery Swap
Auto Dock Charging
