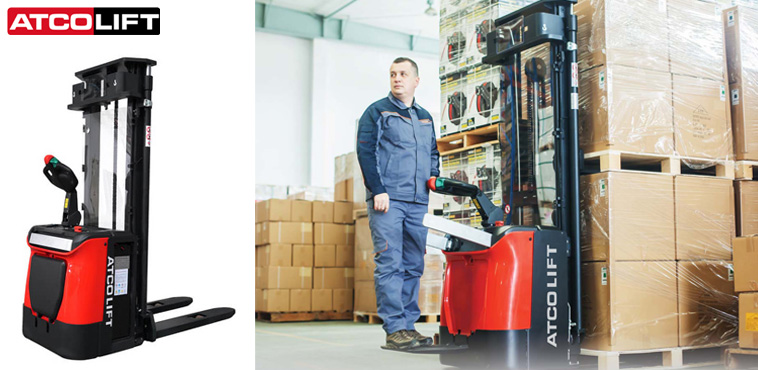

1.6 Ton Electric Stacker For Rent
| Product Code | ALPS16N | |
| Power (battery, diesel, petrol, gas, manual) | Battery | |
| Operator type | Pedestrian/Stand | |
| Load Capacity / rated load | Q(t) | 1.6 |
| Load centre distance | C(mm) | 600 |
| Load distance ,centre of drive axle to fork | x(mm) | 647 |
| Wheelbase | y(mm) | 1215 |
| Service weight | Kg | 1380 |
| Free Lift height | h2(mm) | 1820 |
| Lift height | h3(mm) | 5430 |
| Extended mast height | h4(mm) | 5088 |
| Height of tiller in drive position min./ max. | h14(mm) | 950/1350 |
| Height, lowered | h13(mm) | 90 |
| Overall length | l1(mm) | 1896 |
| Length to face of forks | l2(mm) | 746 |
| Overall width | b1(mm) | 790 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Distance between fork-arms | b5(mm) | 570/685 |
| Ground clearance, centre of wheelbase | m2(mm) | 28 |
