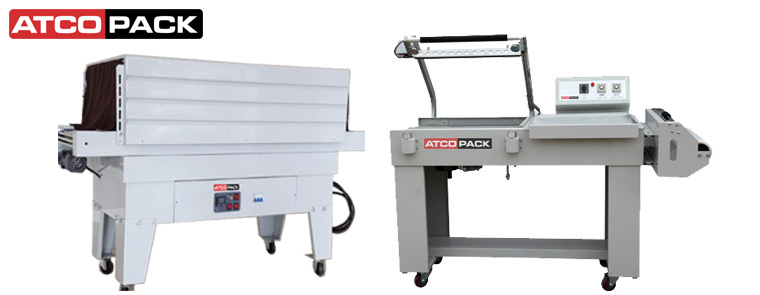

Semi Automatic L Bar Sealer + Tunnel

Projects

Product code	APL5045L
Voltage (V/Hz)	Single Phase 220/50
Power (kw)	1.2
Packing Speed (pcs/hour)	800 - 1200
Max. Packing Size (L×W×H)	450x400x300
Max. Sealing & Cutting Size (L×H)	500x450
Tunnel size (L x W x H) (mm)	900x450x(50 - 250)
Loading (kg)	10
External Dimensions (L×W×H)	1560x757x1040
Packing Dimension (mm)	1320x830x1100
Gross Weight (kg)	184
Net Weight (kg)	126

APL series semiautomatic L-seal cutting machine can convey the products automatically into shrink tunnel through conveying belt for shrink packaging after sealing & cutting. Equipped with shrink tunnel to reach higher working capacity.

Features:

There is protection mechanism for sealing knife against overheating and cutting.
Adopt nano-fiber cutter holder and antisticking thermostable nichrome cutter for sealing & cutting to ensure good sealing without cracking or coking.
After sealing action, packing product goes in the shrink tunnel automatically by the conveyor belt.
The height of conveyor belt can be adjusted with handwheel.
Sealing & cutting time is controlled by time relay accurately.
Double electromagnets are used to produce more pressure for sealing, which will make sealing much firmer.
Sliding film support can keep all kinds of shrink films, up to 550mm in width.
Upper sealing & cutting frame is controlled by return cylinder.
APL5045L adopt pneumatic device.

Application:

APL series semiautomatic L-seal cutting machine is suitable for shrink packing electronic products, hardware, software, foodstuff, printing, pharmacy, floor, ceramics etc in small amount.
Applied to all kinds of packing materials, such as PVC, POF, PP.
