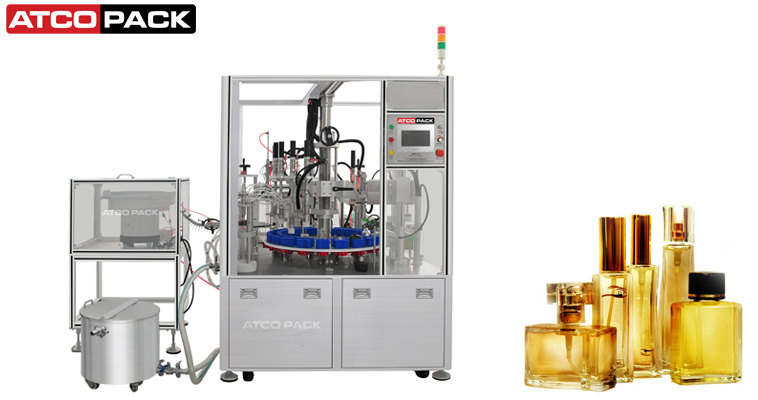

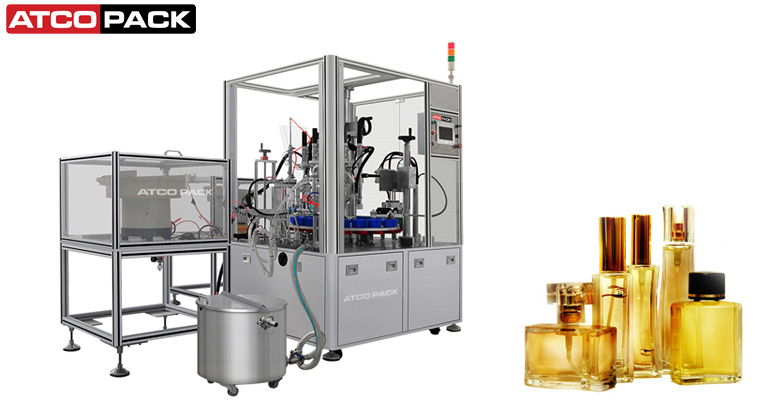

Rotary Perfume Filling & Sealing Machine
APLM-SG-D Automatic rotary 4 Heads Perfume Cleaning & Filling & Crimping & collaring & automatic to put bottles on conveyor Machine is used for filling perfume, floral water, and other water-based materials. It is a rotary type
machine with 4 filling heads, which could fill 4 bottles at the same time, it is efficient and labor-saving.
It consisted of automatic air cleaning, filling, pump positioning, crimping & collaring device, & automatic to put bottles on conveyor. Main function as these are automatic by the system, only need manual put bottles & pump & collar.
The rotary filling heads are working with lifting and descending support device, these process are running automatically. It is also equipped with a recycle system, after reaching set volume the overflowed liquid will be recycled inside the container, which saving time and labor tensity.
Working processing:
One nozzle air cleaning-three nozzles servo motor filling-one nozzle vacuum filling-automatic spray pump feeding, automatic straight spray pump-automatic crimping-automatic collar feeding-automatic collaring-automatic put bottles on conveyor.
Features:
The rotary filling heads are working with lifting and descending support device, these process are running automatically. It is also equipped with a recycle system, after reaching set volume the overflowed liquid will be recycled inside the container, which saving time and labor tensity.
Working processing:
One nozzle air cleaning-three nozzles servo motor filling-one nozzle vacuum filling-automatic spray pump feeding, automatic straight spray pump-automatic crimping-automatic collar feeding-automatic collaring-automatic put bottles on conveyor.
Product Code | APLM-SG-D |
Bottle height | 50-180mm |
Filling speed | 25-35bpm |
Filling range | 10-150ml |
Working station | 20 |
Size | 2008mm*2100mm*1800m |
With adjusting molds | |
With explosion proof glass shield |
Name | Brand & Info | Origin |
Air cylinder | SMC | Japan |
Touch screen | SIEMENS | Germany |
PLC | SIEMENS | Germany |
Filling nozzles | 4 nozzles/ Vacuum filling | China |
Motor | Delta | Taiwan |
Indexing drive | YIGANG TULUN | Taiwan |
Fiber | KEYENCE | Japan |
Sealing ring | SEALTECH | Italy |
Crimping head | Automatic | China |
Machine cover | SUS 304 | High grade stainless steel, polishing |
Vacuum generator | Air Tac | Taiwan |
Servo motor | Panasonic | Japan |
- Mold is adjustable for different sizes/shapes of bottles, but if some shape or size is not normal, then can not use this machine, so general, if customer place order, we should check samples before production
- Speed is 25-35 bpm
- With automatic pump and collar feeders, this machine only needs one worker to put bottle on mold
- With air cleaning system, no need buy extra cleaning machine
- Explosion proof electric box and motors
- With a small SS304 50L movable storage tank which can control perfume feeding, because it has float ball in side
- Machine is small, no need big space
